MCP Agent Swarm
The same swarm code review as swarm-code-review, driven entirely through alineo-mcp's tools instead of raw alineod HTTP calls.
The same code review swarm as Swarm Code Review, driven entirely through
alineo-mcp's tools instead of raw alineod HTTP calls — the MCP client counterpart, useful for
comparing index.ts in each recipe side by side line for line. Every tool call below is the same one a chat
client (Claude Code, Claude Desktop, Cursor) would make if you asked it to run this review for you, once
alineo-mcp is in its mcpServers config.
review-lead ── clones expressjs/cors once
├── reviewer: security ┐
└── reviewer: correctness ┘─ forked from the lead's sandbox — the checkout is already there
editor ── waits for both, merges their findings into one reportSetup
Start OpenSandbox in Docker (one-time setup), build the workspace, and build alineo-mcp:
bunx alineo-cli init
bun install && bun run build
bun run --cwd packages/mcp buildGet a free API key from build.nvidia.com and start alineod with it in its
environment. The agent specs reference ${NVIDIA_API_KEY}, which the daemon resolves — the key never travels in
an MCP tool call.
cd apps/alineod
NVIDIA_API_KEY=nvapi-... bun run startRun it

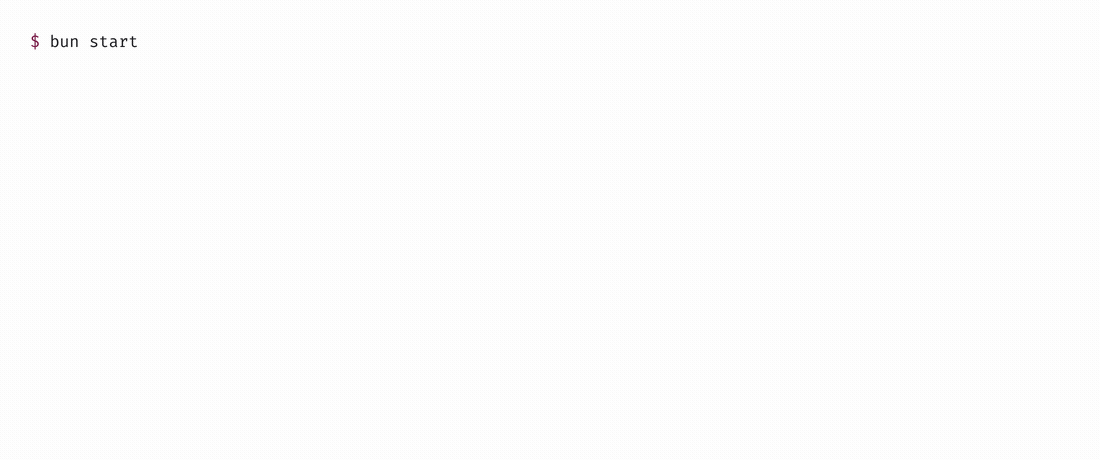

Every other cookbook on this site shows its "Run it" section as a scripted, simulated terminal replay. This one
is a real recording instead — an actual run of cookbooks/mcp-agent-swarm, captured end to end against a live
alineod, because this recipe's whole point is proving that alineo-mcp's tools produce the same swarm a chat
client would drive, and a genuine recording is stronger evidence of that than a canned transcript.
Every line above is copied verbatim from a real run against a live alineod. The pacing is sped up for
watchability — the actual run took about 15 minutes, most of it spent waiting on NVIDIA's free-tier model
latency across four agents, not on anything alineo-mcp itself does.
cd cookbooks/mcp-agent-swarm
bun install
bun startSet ALINEOD_URL if the daemon isn't on http://localhost:4600 — mcp-client.ts passes it through to
alineo-mcp as the env var the server itself reads.
What it does
Connect over stdio
mcp-client.ts spawns the built alineo-mcp binary and connects with
@modelcontextprotocol/client's
StdioClientTransport — the same transport a chat client uses when it launches alineo-mcp from its
mcpServers config.
Check out the repository once
alineod_create_run loads agents/lead.json (which installs git and clones expressjs/cors as a setup step)
with an initial prompt. The lead's first turn reports the commit under review, read back with
alineod_get_result.
Fork a reviewer per concern
Two alineod_spawn_agent calls fork the lead's live sandbox into reviewers for security and correctness. Each
starts with /workspace/cors already present, so the repository is cloned exactly once. Every spawn carries an
idempotencyKey, so a retried call can't fork a duplicate reviewer. The lead's spawnDepth: 1 and maxAgents: 4
cap how far the swarm can grow.
Intervene mid-review
alineod_pause_agent / alineod_resume_agent freeze and thaw the correctness reviewer's container for five
seconds without restarting it; alineod_steer_agent narrows the security reviewer's brief mid-turn — the steer
lands after its current tool call finishes, before its next model call.
Gather with waitFor
One more alineod_spawn_agent call spawns the editor with waitFor on both reviewers. alineod holds it until
they finish, then writes each reviewer's findings into its sandbox under /inputs/, plus an /inputs.json
manifest carrying each outcome. The editor merges them into one report.
This call needs more time than the client's default
waitFor doesn't return until both reviewers finish their own model turns, which can comfortably
exceed the MCP client's 60-second default request timeout. The recipe passes a longer per-call
timeout for this one tool call (mcp-client.ts's call() takes an optional timeoutMs) — worth
knowing if you build your own client against alineo-mcp and hit a REQUEST_TIMEOUT on a
waitFor spawn.
Report and tear down
The merged report comes back from alineod_get_result, is printed and written to review.md, followed by the
final agent tree from alineod_get_run. alineod_delete_run then closes every sandbox in the swarm while keeping
the run's history.
Progress for every agent streams via repeated alineod_watch_events calls, each a bounded 20-second window
resuming from the last event id seen (sinceEventId) — since an MCP tool call is request/response, this is a
poll-and-collect loop rather than one held-open SSE connection, which is what
Swarm Code Review's raw-HTTP version uses instead. Compare watch() in each
recipe's index.ts side by side.
Adapt it
To review a different repository, change the clone URL in agents/lead.json, and the paths and
concerns in index.ts — same as Swarm Code Review.
Where to go next
alineo-mcp covers every tool and how to configure it in Claude Code, Claude
Desktop, or Cursor; Fan-out and gather and Steering and
pausing cover the mechanics used here; the HTTP
API lists every underlying route.
